Tutorial

This guide helps you get started using online generated trajectories within your application. There is also a collection of examples that guide you through the most important features of Ruckig. A time-optimal trajectory for a single degree of freedom is shown in the figure below. We also added plots of the resulting trajectories for all examples. Let's get started!

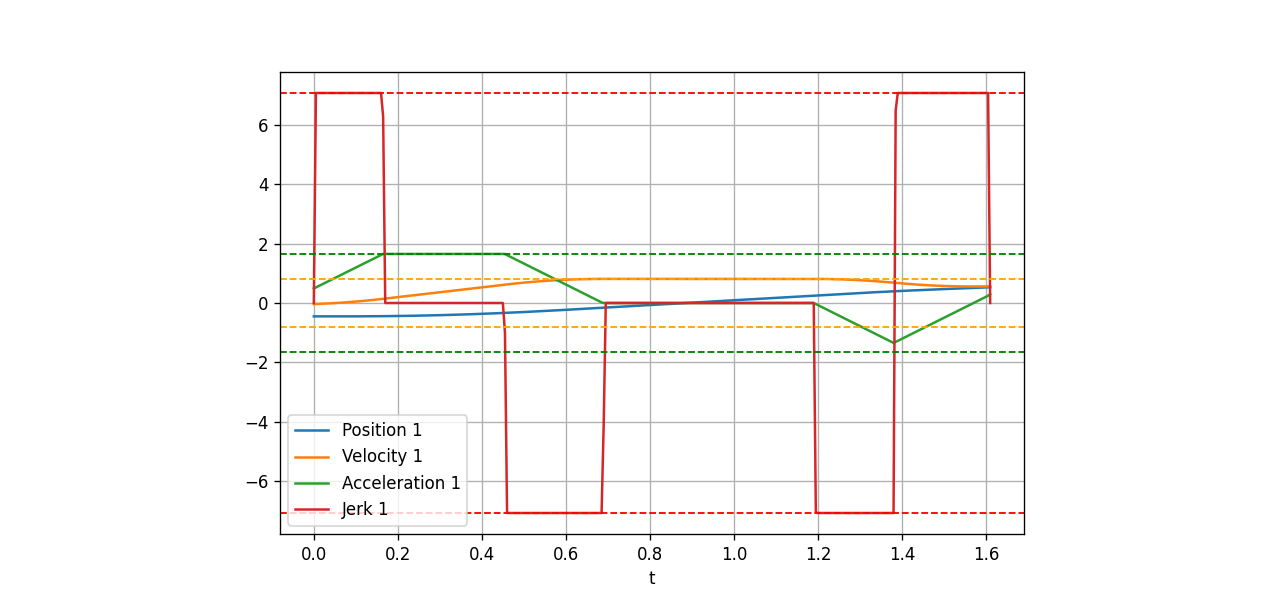

Getting Started

Ruckig provides three main interface classes: the Ruckig, the InputParameter, and the OutputParameter class.

First, you'll need to create a Ruckig instance with the number of DoFs as a template parameter, and the control cycle (e.g. in seconds) in the constructor.

Ruckig<6> ruckig {0.001}; // Number DoFs; control cycle in [s]

The input type has 3 blocks of data: the current state, the target state and the corresponding kinematic limits.

InputParameter<6> input; // Number DoFs
input.current_position = {0.2, ...};
input.current_velocity = {0.1, ...};
input.current_acceleration = {0.1, ...};
input.target_position = {0.5, ...};
input.target_velocity = {-0.1, ...};
input.target_acceleration = {0.2, ...};
input.max_velocity = {0.4, ...};
input.max_acceleration = {1.0, ...};
input.max_jerk = {4.0, ...};

OutputParameter<6> output; // Number DoFs

If you only want to have a acceleration-constrained trajectory, you can also omit the max_jerk as well as the current and target_acceleration value. Given all input and output resources, we can iterate over the trajectory at each discrete time step. For most applications, this loop must run within a real-time thread and controls the actual hardware.

while (ruckig.update(input, output) == Result::Working) {
  // Make use of the new state here!
  // e.g. robot->setJointPositions(output.new_position);

  output.pass_to_input(input); // Don't forget this!
}

Within the control loop, you need to update the current state of the input parameter according to the calculated trajectory. Therefore, the pass_to_input method copies the new kinematic state of the output to the current kinematic state of the input parameter. If (in the next step) the current state is not the expected, pre-calculated trajectory, Ruckig will calculate a new trajectory based on the novel input. When the trajectory has reached the target state, the update function will return Result::Finished.

Intermediate Waypoints

The Ruckig Pro version allows fully local calclulation of trajectories. To allocate the necessary memory for a variable number of waypoints beforehand, we need to pass the maximum number of waypoints to Ruckig via

Ruckig<6> ruckig {0.001, 8};
InputParameter<6> input {8};
OutputParameter<6> output {8};

The InputParameter class takes the number of waypoints as an optional input, however usually you will fill in the values (and therefore reserve its memory) yourself. Then you're ready to set intermediate via points by

input.intermediate_positions = {
  {0.2, ...},
  {0.8, ...},
};

As soon as at least one intermediate positions is given, the Ruckig Community Version switches to the mentioned (of course, non real-time capable) cloud API. If you require real-time calculation on your own hardware, please contact us for the Ruckig Pro Version.

When using intermediate positions, both the underlying motion planning problem as well as its calculation changes significantly. In particular, there are some fundamental limitations for jerk-limited online trajectory generation regarding the usage of waypoints. Please find more information about these limitations here, and in general we recommend to use

input.intermediate_positions = ruckig.filter_intermediate_positions(input.intermediate_positions, {0.1, ...});

to filter waypoints according to a (high) threshold distance. Setting interrupt_calculation_duration makes sure to be real-time capable by refining the solution in the next control invocation. Note that this is a soft interruption of the calculation. Currently, no minimum or discrete durations are supported when using intermediate positions.

Input Parameter

To go into more detail, the InputParameter type has following members:

using Vector = std::array<double, DOFs>; // By default

Vector current_position;
Vector current_velocity; // Initialized to zero
Vector current_acceleration; // Initialized to zero

std::vector<Vector> intermediate_positions; // (only in Pro Version)

Vector target_position;
Vector target_velocity; // Initialized to zero
Vector target_acceleration; // Initialized to zero

Vector max_velocity;
Vector max_acceleration;
Vector max_jerk; // Initialized to infinity

std::optional<Vector> min_velocity; // If not given, the negative maximum velocity will be used
std::optional<Vector> min_acceleration; // If not given, the negative maximum acceleration will be used

std::optional<Vector> min_position; // (only in Pro Version)
std::optional<Vector> max_position; // (only in Pro Version)

std::array<bool, DOFs> enabled; // Initialized to true
std::optional<double> minimum_duration;
std::optional<double> interrupt_calculation_duration; // [µs], (only in Pro Version)

ControlInterface control_interface; // The default position interface controls the full kinematic state
Synchronization synchronization; // Synchronization behavior of multiple DoFs
DurationDiscretization duration_discretization; // Whether the duration should be a discrete multiple of the control cycle (off by default)
TargetLimitViolation target_limit_violation; // Behavior when the target state exceeds the limits (return error by default) (only in Pro Version)

std::optional<Vector<ControlInterface>> per_dof_control_interface; // Sets the control interface for each DoF individually, overwrites global control_interface
std::optional<Vector<Synchronization>> per_dof_synchronization; // Sets the synchronization for each DoF individually, overwrites global synchronization

On top of the current state, target state, and constraints, Ruckig allows for a few more advanced settings:

• Position limits are handled similarly to the other kinematic limits: If the target state would inevitably lead to a trajectory outside of the position limits, we either raise an exception with an error message or return the ErrorInvalidInput result code. During the trajectory calculation, we then try to stay within the limits. However, in contrast to velocity-, acceleration-, or jerk-limits there is no strict guarantee that a solution within the positional limits exists even after checking the current and target state. In these (rare) cases, we return a ErrorPositionalLimits result code together with the invalid trajectory.
• A minimum velocity and acceleration can be specified - these should be a negative number. If they are not given, the negative maximum velocity or acceleration will be used (similar to the jerk limit). For example, this might be useful in human robot collaboration settings with a different velocity limit towards a human. Or, when switching between different moving coordinate frames like picking from a conveyer belt.
• You can overwrite the global kinematic limits to specify limits for each section between two waypoints separately by using e.g. per_section_max_velocity.
• If a DoF is not enabled, it will be ignored in the calculation. Ruckig will output a trajectory with constant acceleration for those DoFs.
• A minimum duration can be optionally given. Note that Ruckig can not guarantee an exact, but only a minimum duration of the trajectory.
• The control interface (position or velocity control) can be switched easily. For example, a stop trajectory or visual servoing can be easily implemented with the velocity interface.
• Different synchronization behaviors (i.a. phase, time, or no synchonization) are implemented. Phase synchronization results in straight-line motions.
• The trajectory duration might be constrained to a multiple of the control cycle. This way, the exact state can be reached at a control loop execution.

We refer to the API documentation of the enumerations within the ruckig namespace for all available options.

Input Validation

To check that Ruckig is able to generate a trajectory before the actual calculation step,

ruckig.validate_input(input, check_current_state_within_limits=false, check_target_state_within_limits=true);
// returns true or throws

throws an error with a detailed reason if an input is not valid. You can also set the default template parameter to false via ruckig.validate_input<false>(...) to just return a boolean true or false. The two boolean arguments check that the current or target state are within the limits. The check includes a typical catch of jerk-limited trajectory generation: When the current state is at maximal velocity, any positive acceleration will inevitable lead to a velocity violation at a future timestep. In general, this condition is fulfilled when

Abs(acceleration) <= Sqrt(2 * max_jerk * (max_velocity - Abs(velocity))).

If both arguments are set to true, the calculated trajectory is guaranteed to be within the kinematic limits throughout its duration. Also, note that there are range constraints of the input due to numerical reasons, see below for more details.

Result Type

The update function of the Ruckig class returns a Result type that indicates the current state of the algorithm. This can either be working, finished if the trajectory has finished, or an error type if something went wrong during calculation. The result type can be compared as a standard integer.

State	Error Code
Working	0
Finished	1
Error	-1
ErrorInvalidInput	-100
ErrorTrajectoryDuration	-101
ErrorPositionalLimits	-102
ErrorExecutionTimeCalculation	-110
ErrorSynchronizationCalculation	-111

Output Parameter

The output class includes the new kinematic state and the overall trajectory.

Vector new_position;
Vector new_velocity;
Vector new_acceleration;

Trajectory trajectory; // The current trajectory
double time; // The current, auto-incremented time. Reset to 0 at a new calculation.
double delta_time; // The last used time step between updates (the control cycle).

size_t new_section; // Index of the section between two (possibly filtered) intermediate positions.
bool did_section_change; // Was a new section reached in the last cycle?

bool new_calculation; // Whether a new calculation was performed in the last cycle
bool was_calculation_interrupted; // Was the trajectory calculation interrupted? (only in Pro Version)
double calculation_duration; // Duration of the calculation in the last cycle [µs]

Moreover, the trajectory class has a range of useful parameters and methods.

double duration; // Duration of the trajectory
std::array<double, DOFs> independent_min_durations; // Time-optimal profile for each independent DoF

<...> at_time(double time); // Get the kinematic state of the trajectory at a given time
<...> get_position_extrema(); // Returns information about the position extrema and their times

Again, we refer to the API documentation for the exact signatures.

Offline Calculation

Ruckig also supports an offline approach for calculating a trajectory:

result = ruckig.calculate(input, trajectory);

When only using this method, the Ruckig constructor does not need a control cycle (delta_time) as an argument. However if given, Ruckig supports stepping through the trajectory with

while (ruckig.update(trajectory, output) == Result::Working) {
  // Make use of the new state here!
  // e.g. robot->setJointPositions(output.new_position);
}

starting from the current output.time (currently Ruckig Pro only).

Tracking Interface

When following an arbitrary signal with position, velocity, acceleration, and jerk-limitation, the straight forward way would be to pass the current state to Ruckig's target state. However, as the resulting trajectory will take time to catch up, this approach will always lag behind the signal. The tracking interface solves this problem by predicting ahead (e.g. with constant acceleration by default) and is therefore able to follow signals very closely in a time-optimal way. This might be very helpful for (general) tracking, robot servoing, or trajectory post-processing applications.

To use the tracking interface, construct

Trackig<1> trackig {0.01};  // control cycle

and set the current state as well as the kinematic constraints via

input.current_position = {0.0};
input.current_velocity = {0.0};
input.current_acceleration = {0.0};
input.max_velocity = {0.8};
input.max_acceleration = {2.0};
input.max_jerk = {5.0};

Then, we can track a signal in an online manner within the real-time control loop

for (double t = 0; t < 10.0; t += trackig.delta_time) {
  auto target_state = signal(t); // signal returns position, velocity, and acceleration
  auto res = trackig.update(target_state, input, output);
  // Make use of the smooth target motion here (e.g. output.new_position)

  output.pass_to_input(input);
}

The Trackig interface has two different modes: One optimized for higher quality tracking and one for faster computation time:

trackig.mode = TrackigMode::Fast;

Please find a complete example here. This functionality can also be used in an offline manner, e.g. when the entire signal is known beforehand. Here, we call the

smooth_trajectory = trackig.calculate_trajectory(target_states, input);

method with the trajectory given as a std::vector of target states. The Tracking interface is available in the Ruckig Pro version.

Dynamic Number of Degrees of Freedom

So far, we have told Ruckig the number of DoFs as a template parameter. If you don't know the number of DoFs at compile-time, you can set the template parameter to ruckig::DynamicDOFs and pass the DoFs to the constructor:

Ruckig<DynamicDOFs> ruckig {6, 0.001};
InputParameter<DynamicDOFs> input {6};
OutputParameter<DynamicDOFs> output {6};

This switches the default Vector from the std::array to the dynamic std::vector type. However, we recommend to keep the template parameter when possible: First, it has a performance benefit of a few percent. Second, it is convenient for real-time programming due to its easier handling of memory allocations. When using dynamic degrees of freedom, make sure to allocate the memory of all vectors beforehand.

Custom Vector Types

Ruckig supports custom vector types to make interfacing with your code even easier and more flexible. Most importantly, you can switch to Eigen Vectors simply by including Eigen (3.4 or later) before Ruckig

#include <Eigen/Core> // Version 3.4 or later
#include <ruckig/ruckig.hpp>

and then call the constructors with the ruckig::EigenVector parameter.

Ruckig<6, EigenVector> ruckig {0.001};
InputParameter<6, EigenVector> input;
OutputParameter<6, EigenVector> output;

Now every in- and output of Ruckig's API (such as current_position, new_position or max_jerk) are Eigen types! To define completely custom vector types, you can pass a C++ template template parameter to the constructor. This template template parameter needs to fulfill a range of template arguments and methods:

template<class Type, size_t DOFs>
struct MinimalVector {
  Type operator[](size_t i) const; // Array [] getter
  Type& operator[](size_t i); // Array [] setter
  size_t size() const; // Current size
  bool operator==(const MinimalVector<T, DOFs>& rhs) const; // Equal comparison operator

  // Only required in combination with DynamicDOFs, e.g. to allocate memory
  void resize(size_t size);
};

Note that DynamicDOFs corresponds to DOFs = 0. We've included a range of examples for using Ruckig with (10) Eigen, (11) custom vector types, and (12) custom types with a dynamic number of DoFs.

Macro Flags

You can find a list of all macro (preprocessor) flags in the utils.hpp header.

To use them, define the macros before including the Ruckig header files in your project:

#define RUCKIG_<...>

#include <ruckig/ruckig.hpp>
